Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: XR Solar
  • Model Number: XRT-SP2.3W16V
  • Material: Monocrystalline Silicon
  • Size: 165x105mm
  • Number of Cells: 32
  • Max. Power: 2.5w
  • Item No.: XRT-SP2.3W16V Sunpower Solar Panel
  • Maximum Power at STC (Pmax): 2.5Wp
  • Voltage at Maximum Power (Vmpp): 16V
  • Current at Maximum Power (Impp): 140mA
  • Open Circuit Voltage (Voc): 20.06V
  • Short Circuit Current (Isc): 165mA
  • Temperature Coefficient of Pmax: -0.4 %/°C
  • Temperature Coefficient of Voc: -0.31 %/°C
  • Maximum System Voltage: 1000 V
  • Weight: 140g

Packaging & Delivery

Packaging Details carton packing, wooden packing, pallet

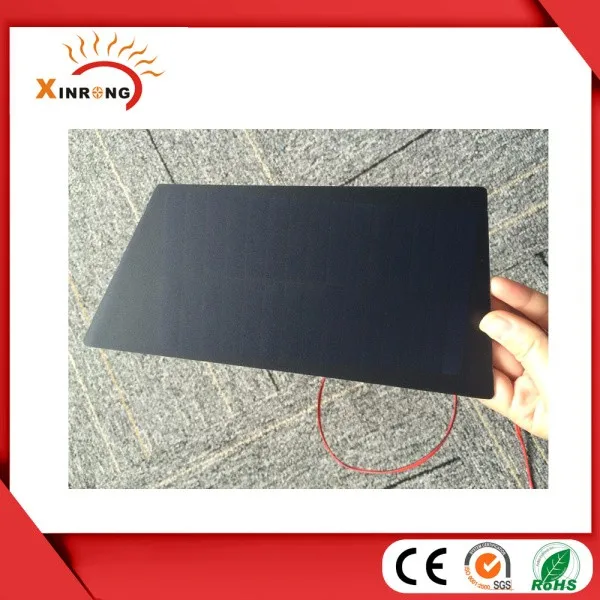

Sunpower Solar Panel
Delivery Time two weeks after order confirmation






Product Description

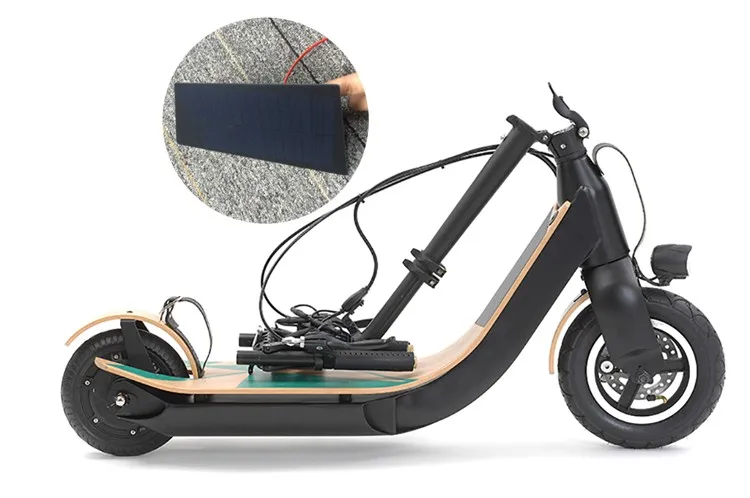

       2.3w 16v  Customized for Scooter Sunpower  Solar Panel
Series Specifications



*Model:  XRT-SP2.3W16V

*Sunpower  Solar Cell

*Peak Voltage (Vmp): 16.5V

*Open Circuit Voltage (Voc): 20V

*Peak Current (Imp): 4140mA

*Short Circuit Current (Isc): 180mA





Highlights:
*UV resistance solar panel
*Humidity resistance
*Scratch resistance
*Consistent textured surface
*Attractive appearance


This small easy-to-use PET lamination solar cell would be a great addition to your next solar powered project. This solar cell provides approximately 5V DC in direct sunlight at up to 1.5W. Multiple units can be chained serial or parallel to increase voltage and current.

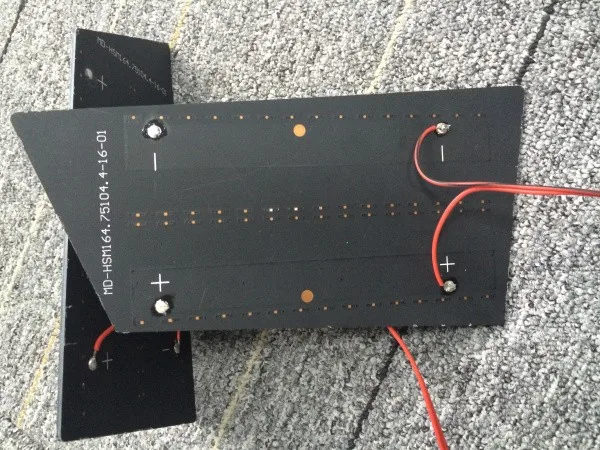

PET Laminated small solar panel which is laminating by a machine at a temperature of 135 degree, then all the material will be melted together, you will see the layouts as below,
1. PET
2. EVA
3. Sunpower Solar cell
4. EVA
5. PCB
it is more suitable for outdoor solar lights.



Application:

PET lamination solar cell are widely used in solar toys, solar lawn light, solar torch, solar flashlight, and other solar powered items; Low voltage PET lamination solar cells are also ideal for hobbyists and school or university project.






Company Information



XinRong Solar Company information

  • XinRong Solar is an international PV supplier manufacturer in China from 2011.
  • XinRong Solar uses the newest technology and equipment with skilled operators
  • XinRong Solar has powerful Research Ability, 15~20 new kinds of products are launched each year.
  • XinRong Solar has annual 200MW solar panel and solar cell production capacity.
  • 80% of our products are export to more than 60 countries in the world. Successful projects were installed in more than 60 countries in the world

Production process photo and equipment











FAQ



1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Ningbo, Zhejiang, China, near Shanghai. You are warmly welcomed to visit us!

3. Q: How can I get some samples?

A: Please connect me for samples

4. Q: Can the price be cheaper?

A: Of course, you will be offered a good discount for big amount.













Packaging & Shipping











Payment Terms

T/T, L/C are the payment methods we accept at present.

Shipping

Material in stock can be produced (procedure 15-20days) right away after pre-payment confirmation.  Don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.
